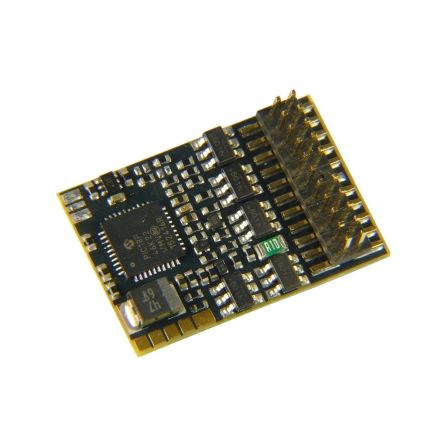

Bachmann 36-570A Plux22 DCC Decoder With Brake Button Function

Name: Cheltenham Model Centre
Telephone: +44 (0)1242 523 117 or 234 644

Product Code: 36570A

Manufacturer Number: 36-570A
Condition: New
Category: Model Railways, DCC Controllers, Decoders And Sound Decoders, DCC Decoders
Brand: Bachmann
DCC Pin: Plux22

£33.95

Features

- Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
- 11 function outputs (9 powered and 2 logic level)
- 1.2A continuous load
- Suitable for models equipped with DC motors (including coreless motors)
- Brake Button function for realistic control of braking (operates on F2)

Operating Modes
- Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
- 14, 28 and 128 speed steps
- Short and Long addresses
- Motor Control Features
- Suitable for models equipped with DC motors (including coreless motors)
- 1.2A continuous load
- Variable pulse width frequency motor regulation (up to 40kHz)
- Motor output overload protection; Back EMF (de-selectable)

Function Outputs
- 9 powered-function outputs with overload protection
- 800mA load per output
- 800mA total load of all function outputs
- 2 additional logic level outputs
- Shunting speed and momentum key selectable

Dimensions
- 22mm x 15mm x 3.5mm

Default Address
- Address 3

Programming
- DCC Service Mode & DCC PoM (Programming on Main)

Additional Features
- RailCom Feedback system
- Capacitor connections
- Upgradable firmware
